Miulika Single-phase Single-pole Wire Output KWh Counter DIN Rail Mounting - Electronic

Miulika Single-phase Single-pole Wire Output KWh Counter DIN Rail Mounting - Electronic.Single direction measurement single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.Bicolor LED instructions power supply state (green) and signal of energy impulses (red).Extension terminals cover, in order to protect to use safety.Directly connect and use, there are two types wiring you may select. Standard configuration type S connection, may select type U connection (Product Configuration code is US).Automatic detection the direction of the flow of load current. And instructions (Only red energy impulses signal when working.If no green instructions power supply, that is meaning the direction of the flow of load current reverse).Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulses register.35mm standard DIN rail installation, complying with standard DIN EN50022.Standard configuration pulse output passive (polarity).May select distant pulse output passive ( nonpolarity). And contact with all kind of AMR system conveniently.Complying with standard IEC 62053-31 and DIN 43864.Single pole width (Modulus 18mm), complying with standard DIN43880.Kwh Meter Din. Kilowatt Meter. Electricity Power Meter Din. Electric kWh Meter. DIN-Rail Kilowatt Hour kwh Meter. Digital. Single Phase.

• Bicolor LED instructions power supply state (green) and signal of energy impulses (red).
• Single direction measurement single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.

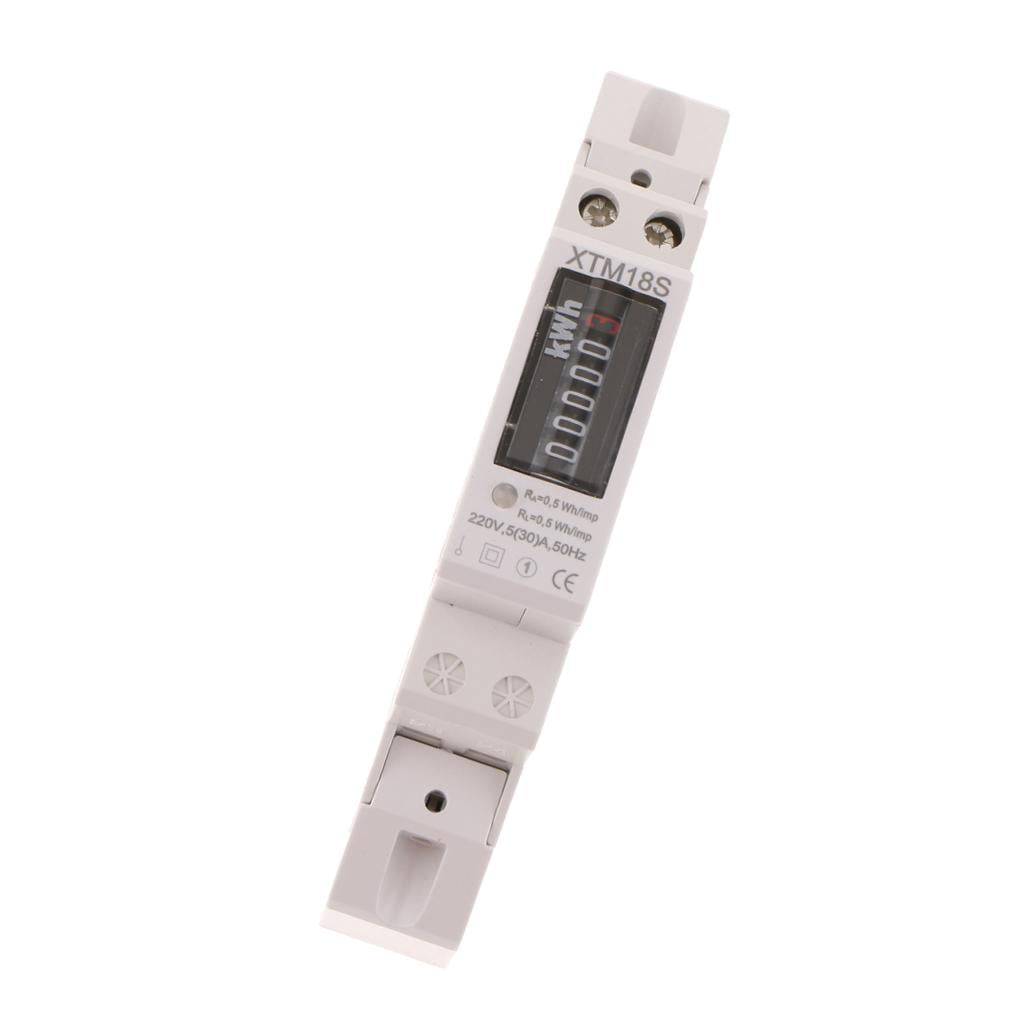

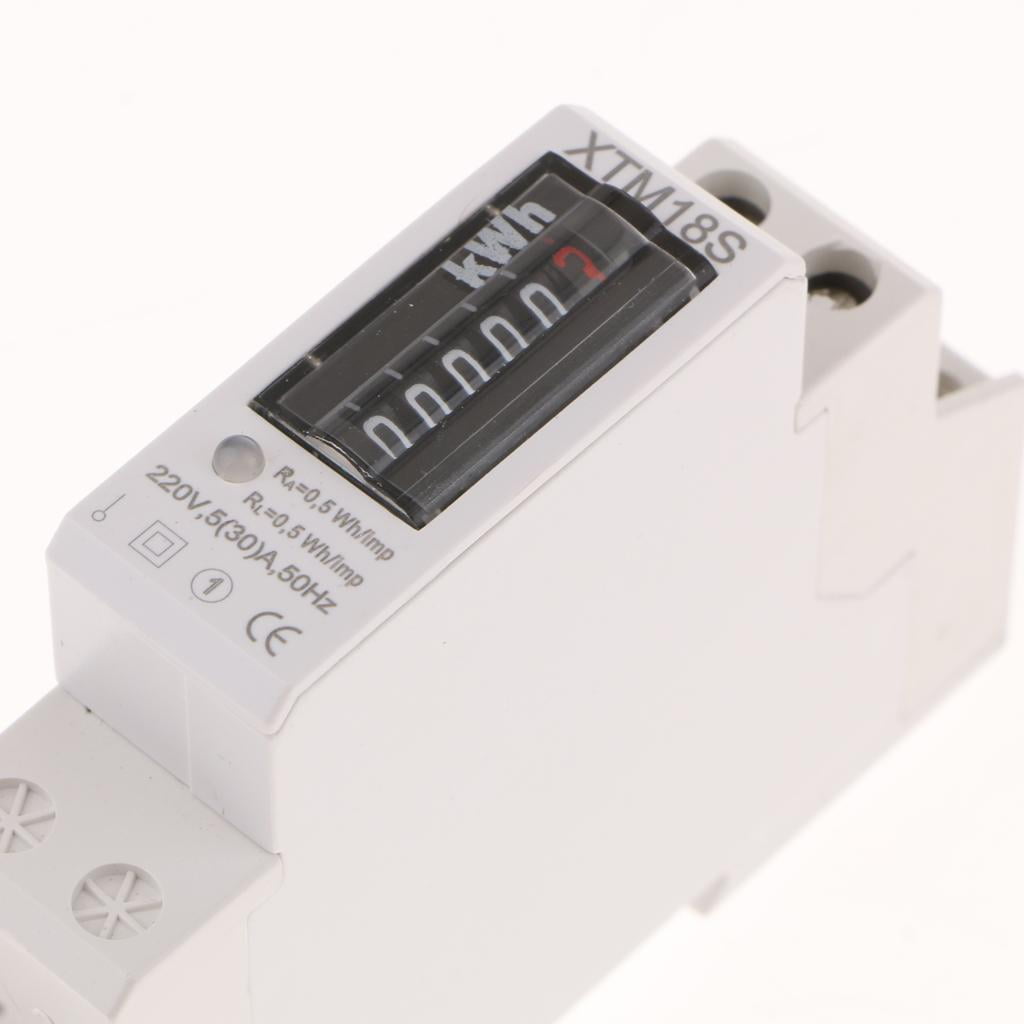

• Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulses register.
• Single pole width (Modulus 18mm), complying with standard DIN43880.
• Directly connect and use, there are two types wiring you may select. Standard configuration type S connection, may select type U connection (Product Configuration code is US).
• Automatic detection the direction of the flow of load current. And instructions (Only red energy impulses signal when working.If no green instructions power supply, that is meaning the direction of the flow of load current reverse).

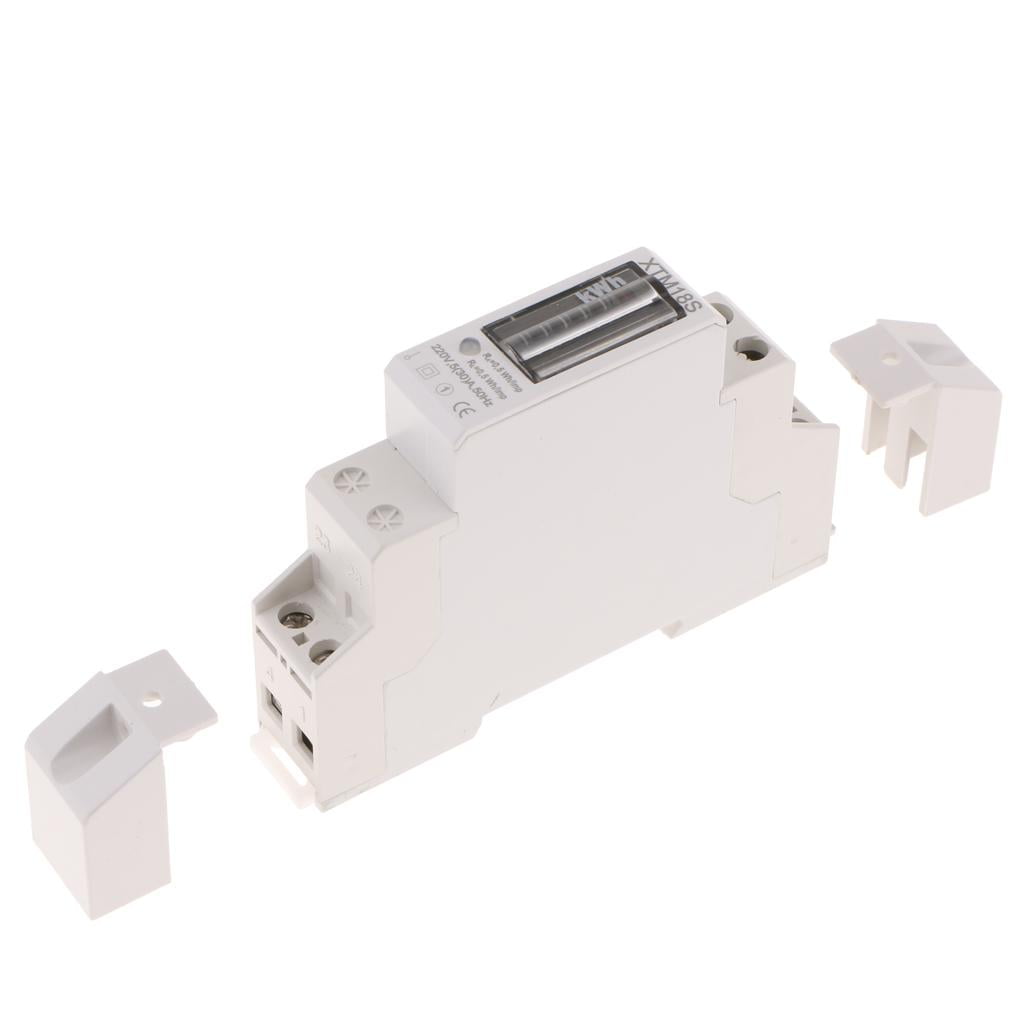

• Extension terminals cover, in order to protect to use safety.
• 35mm standard DIN rail installation, complying with standard DIN EN50022.
• Standard configuration pulse output passive (polarity).May select distant pulse output passive ( nonpolarity). And contact with all kind of AMR system conveniently.Complying with standard IEC 62053-31 and DIN 43864.
• Specification:
  Material: Plastic
  Product detailed size: 117x68x18mm
  Load capacity of electric energy meter: 0.05Ib-Imax
  Ambient temperature of the place to save: -25℃-+55℃
  Relative humidity does not exceed: 95%
  Insulation energy withstands frequency: 50Hz/60Hz
  Rated voltage: 110V; 120 v; 220 v
  Rated current: 220V 5(30)A
  Package Includes:
  1 Piece Rail Table
  1 Piece Manual
